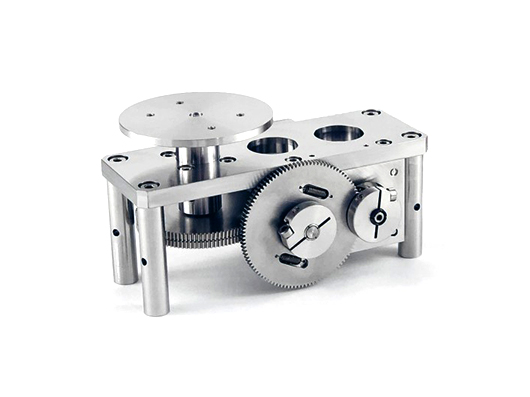

UHV RSB Rotation Stage

UHV Rotation Stage

AML ultra high vacuum compatible rotation stages are intended for intermittent rotation of balanced loads or as a precision gearbox. They are manufactured with UHV compatible material and construction methods and utilize AML D35.1 UHV stepper motors. The RSB10K/20K/30K can be mounted directly on AML LTV translation stages or stacked on another RSB without additional hardware.

Overview

• Resolutions from 0.036° to 0.004° per step
• Unloaded backlash is less than resolution
• Intended for intermittent rotation of balanced loads of up to 1 kg
• RSB10K/20K/30K can stack on AML translation stages
• Suitable for use below 1 x 10^-10 mBar
• Bakeable to 200°C
